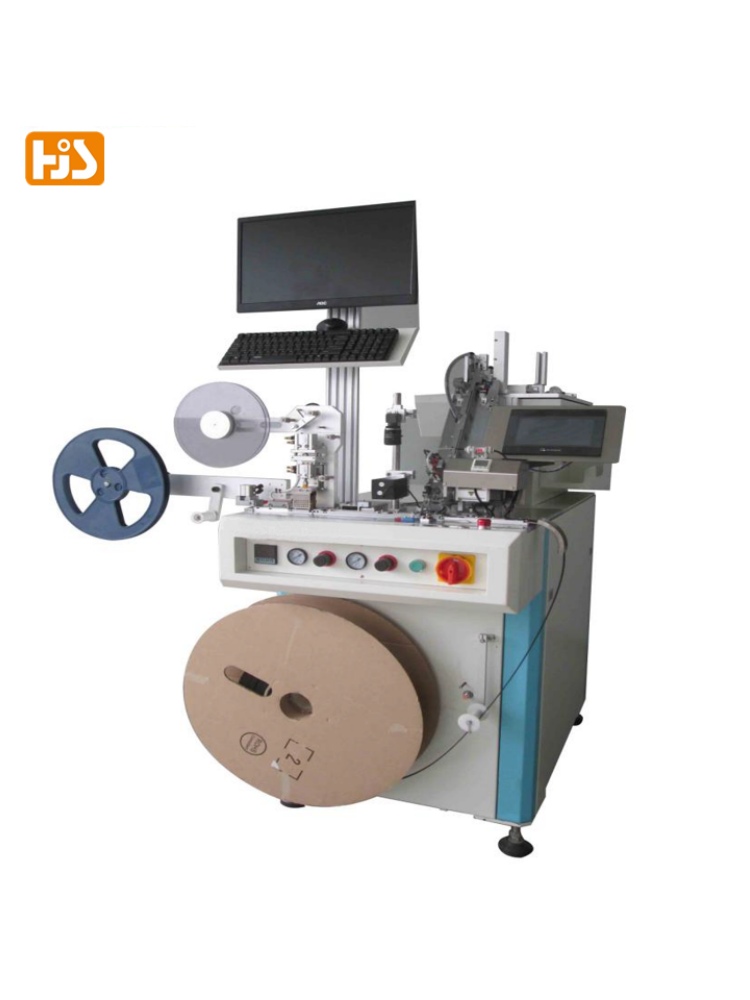

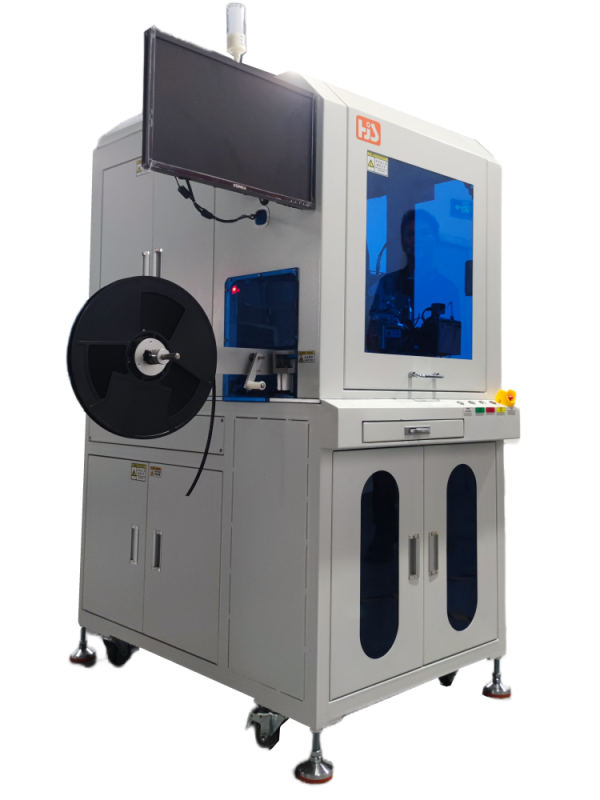

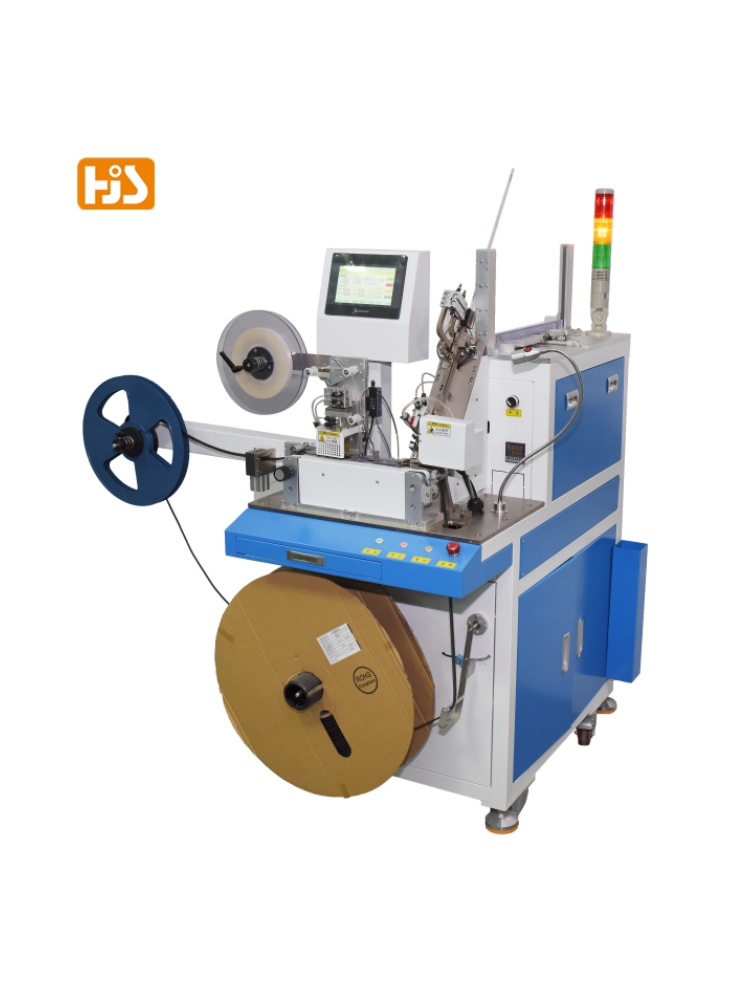

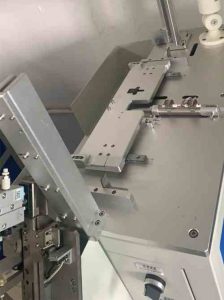

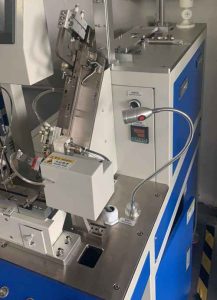

Automatic Tape and Reel Machine with Tube Feeding HJC-007T

Name:Professional Automatic SMD Taping Machine for SMD tube components packaging/ Tube IC tape and reel machine with laser marking

Model: HJC-007T

Use: the taping packages of a variety of surface mounting devices (SMD)

Set up is simple via touch screen interface, 2D CCD inspection is optional.

tube tape and reel machine|automatic tube tape and reel machine|tube feeder tape and reel|tube to tape and reel conversion|ic tube feeder machine|tube ic packaging machine|tube ic taping equipment

Function introduction:

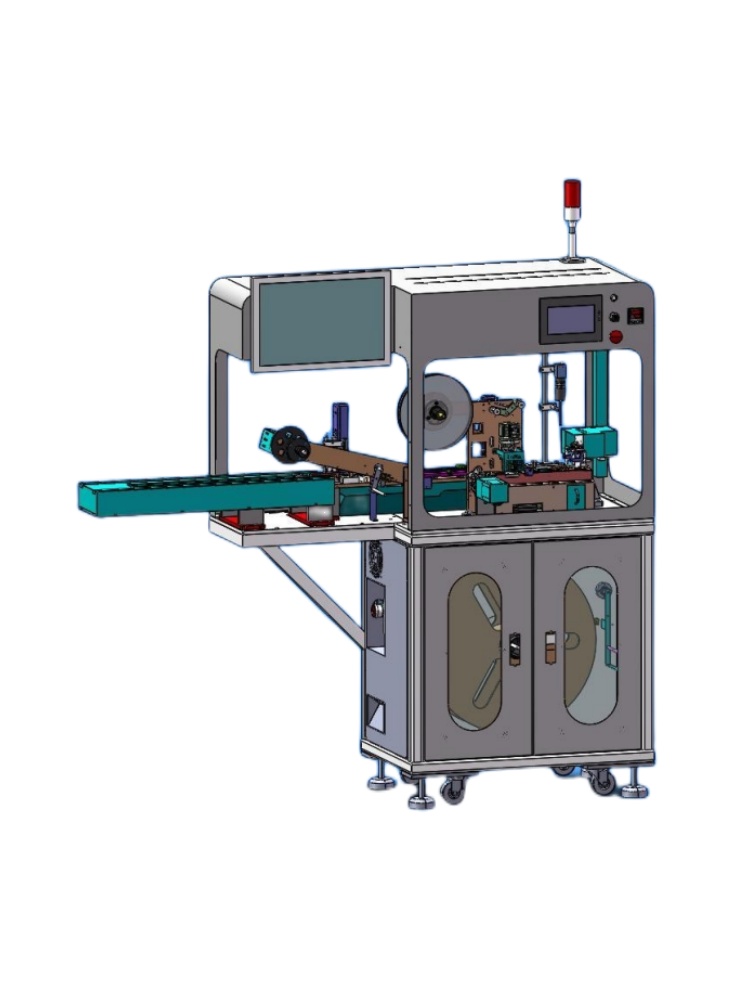

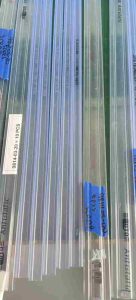

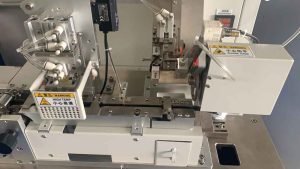

1.Automatic feeding of products by feeding tube
2.The manipulator sucks the product and place to the carrier belt.
3.Tape-weaving module completes the sealing of tape
4.Touch screen for machine operation
5.The image detection system detects the direction, presence, pin and batch of the product.

Features :

Automatically fed by the feeding tube, sucked by nozzle and placed into carrier tape and sealed. Automatic Taping for Products SOP8\14\16.
According to customer’s technological requirements, besides basic taping function, CCD camera  can be added.
The taping machine is suitable for a wide range of carrier tapes.

One machine is for one spec tube:





Model HJC-007T Auto Component Taping Machine
Feeding Rubber discs and paper discs 13 inch, 15 inch, 22 inch, 27 inch
Tape width 12 ≤ width ≤ 24mm, depth ≤ 30mm
Control system Programmable Logic Controller+Touch Screen+servo motor
Temperature control PID Temperature Control
Taping speed 3K-15K UPH per hour (determined by product type)
Calculator Internal pulse count
Package type Suitable for hot and cold seals
Selective configuration Image Detection System detects the direction, presence, pin and batch of the product
Weight 180KG
Mchine Dimension 1040*1020*1400(L*W*H)
Power supply AC220V / 50Hz
Pressure 0.40~0.6Mpa
Carrier tape empty alarm available
Cover tape empty alarm available
Empty pocket detection available
Counter Qty/Reel available(software auto count)
Component Orientation alarm Non standard configuration/Optional sensor and image detection system
Carrier to cover weld strength check Need “Peel force tester” for check
Setup time for reel changeover 2~4minutes
Setup time for model changeover with different tape width 2~4minutes
Machine supply lead time around 30days (customized per component size and customer requirement)

Options:

  1. Can be tube input and tube output, with CCD inspection and sorting;
  2. Can be tube input and tape output, with laser marking or dotting function;
