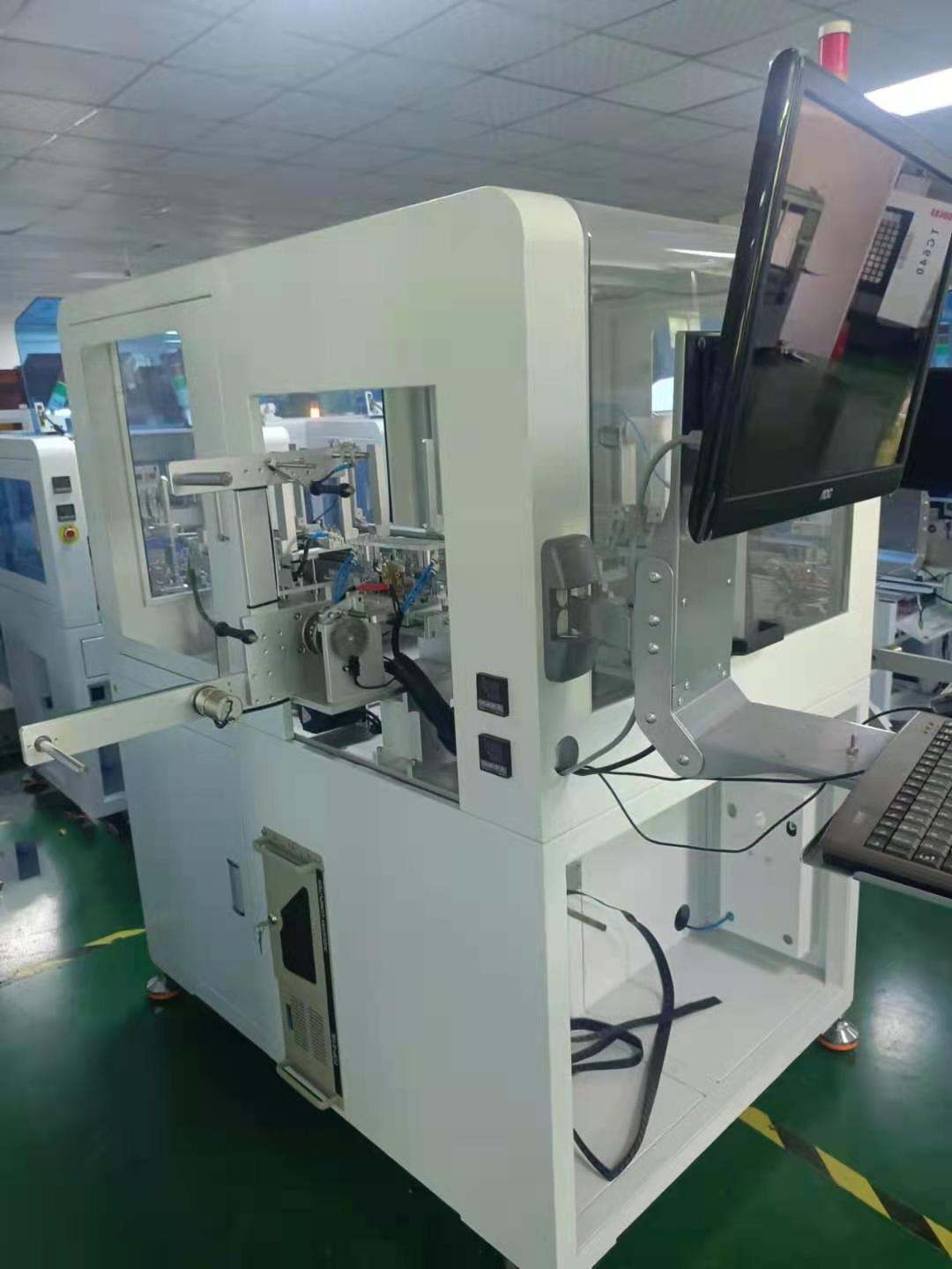

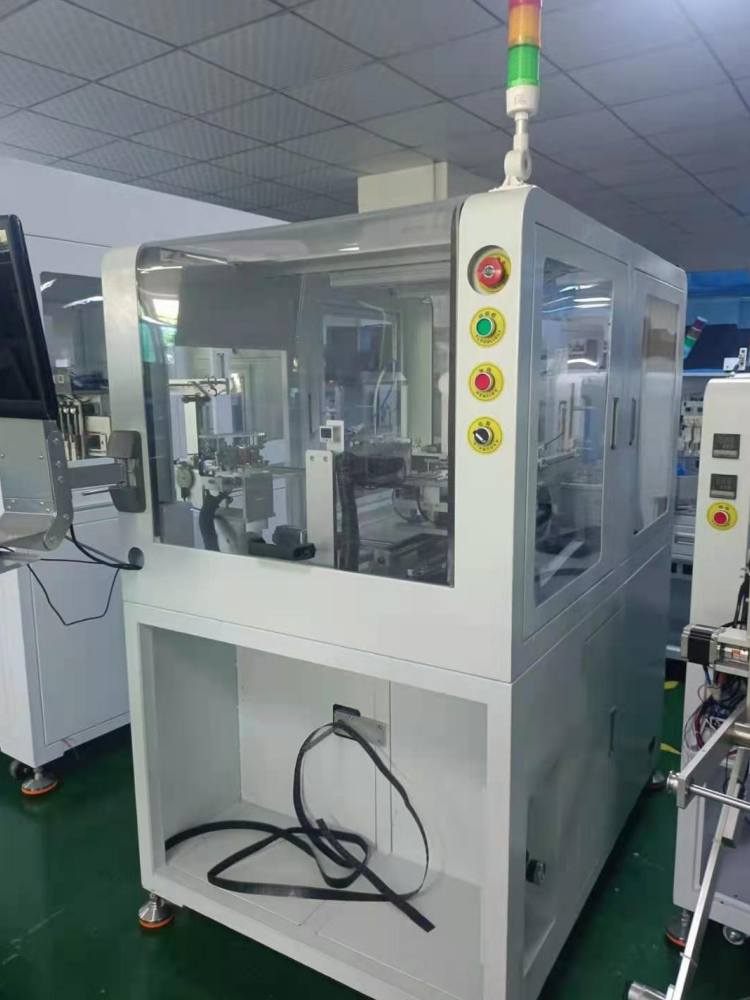

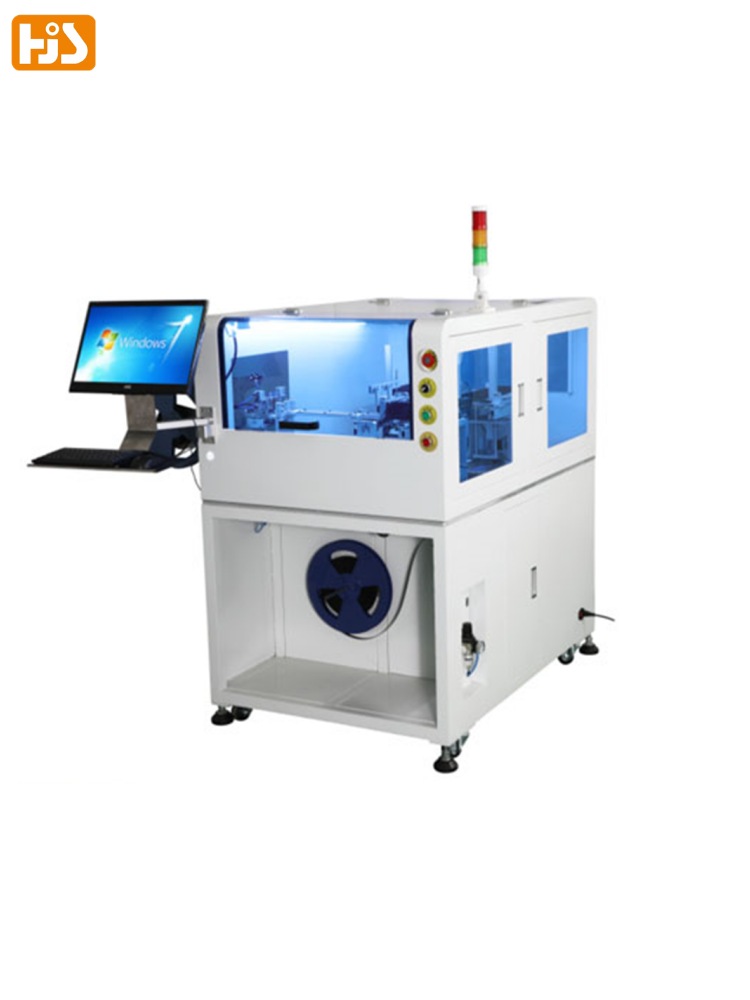

Reel to Tray Transfer Machine HJC-880

Name: Automatic Reel to Tray Conversion Machine

Model: HJC-880

Use: components in tape can be returned to be bulk on tray ;

One machine can be used for tray to reel and reel to tray. The standard JEDEC tray are loaded and unloaded automatically. It can collect 20~30 trays(depends on tray size)

reel to tray machine|automatic reel to tray|reel to tray conversion|reel to tray conversion equipment|reel to tray converter

Features:

* Touch screen HMI, easy to operate, simple and clear parameter setting, easy to learn and understand

* Manipulator module operates at high speed, repeatedly picks components with parameters setting

* Empty quantity before and after taping and counting can be set;

* Suitable for hot sealing and self-adhesive tapes, and the width of the cover tape is adjustable

* CCD visual inspection system detects the characters on the upper surface of the product, the mark point of the product, and the direction of the component(optional function)

* One machine can be used for tray to reel and reel to tray. The standard JEDEC tray are loaded and unloaded automatically. It can collect 30 trays(depends on tray size)

* air source: 0.4 ~ 0.6MPa

* Power: 0.4KW

* ambient temperature: 0 ~ 40 ℃

* capacity: 6000pcs / h (depends on components)

* input voltage: AC220V  50Hz

* positioning mode: mechanical positioning, CCD detection (optional)

* taking and placing device: vacuum suction nozzle * 1

* support packaging: BGA / QFN / QFP / tssop / MSOP / SOP / other IC

* tape specification: 8 ~ 48mm

* counting function: system internal pulse counting

Options:

  1. Machine is flexible for adjustment
