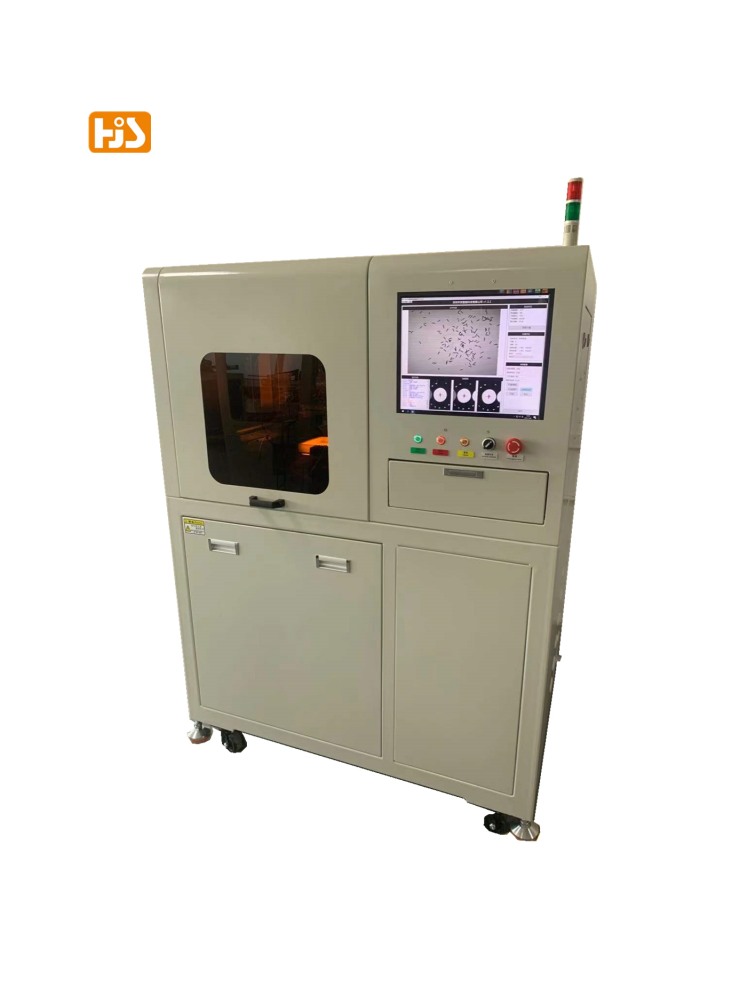

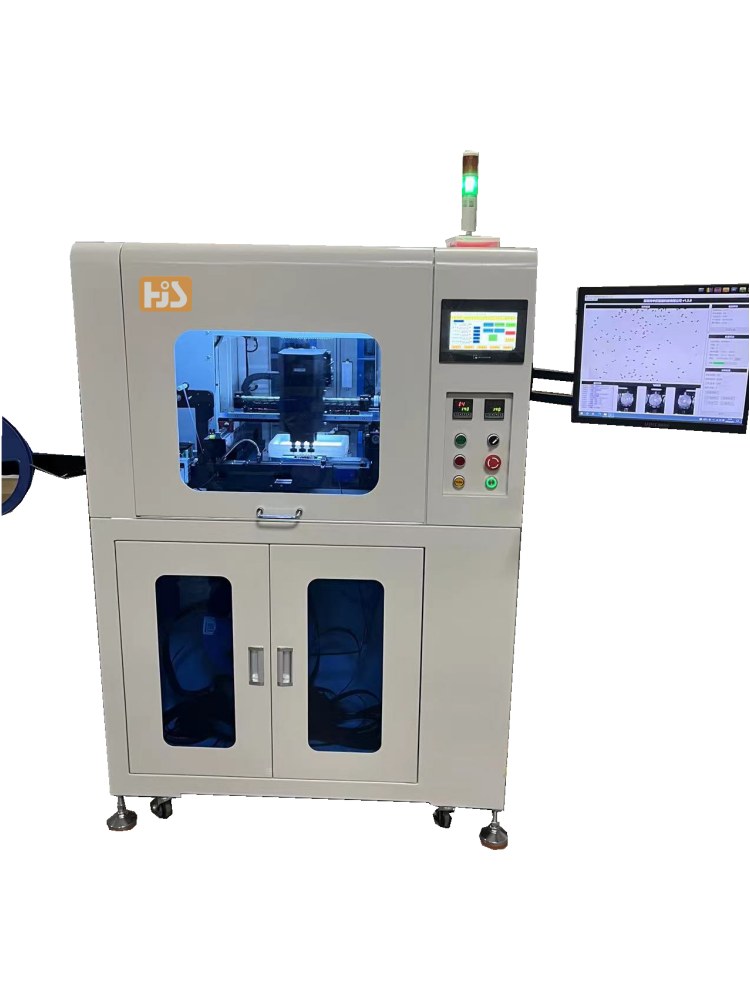

Flexible Bowl Feeder to waffle tray/tape and reel HJC-320
Name: Automatic tape and reel machine with flexible feeder
Use: suitable for small size IC/metal pins/metal dome/spring/plastic parts taping;
Set up is simple via touch screen interface. One machine can be compatible for different spec components.
- Perfect for automotive, cosmetic, electronic, medical and any application featuring varied parts and frequent changeovers. One Flexible Feeder can replace several conventional feeders on your line.
- Visual part recognition frees you from the limits of mechanical feeding, speeding up configuration and eliminating the need for manual feeder calibration.
- HJS Flexible Feeder Solution’s integrated vision architecture also allows for high speed latching of robot positions and a reduction in cycle time for products requiring fast inspection and orientation after pick up.
Work flow of the equipment:

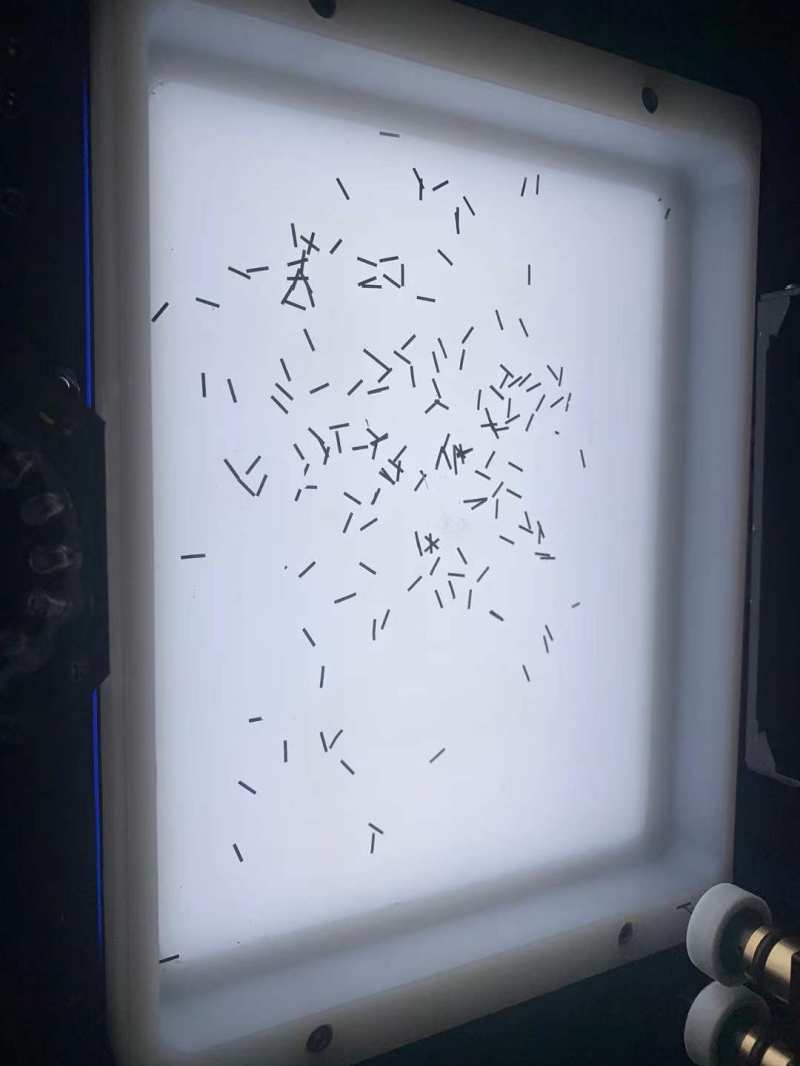

Manually put the bulk materials on the feeder platform —> Flexible feeder vibrates —>CCD check position and pick correct component —>CCD recheck component position —> NG collect —> OK put in carrier tape —> hot sealing and collecting carrier tape in reel.
- Equipment size: L2204* W960*H1957 (including warning light height);
- Weight: 250KG
- Power supply: AC220V,50Hz；;
- Air pressure: 4-6 kg/cm;
- Sealing temperature: set according to material and peeling strength requirements;
- Working environment requirements of the machine: normal temperature.
- Besides from flexible feeder to carrier tape, machine can be designed as from flexible feeder to tray/waffle tray
From feeder to tray:
