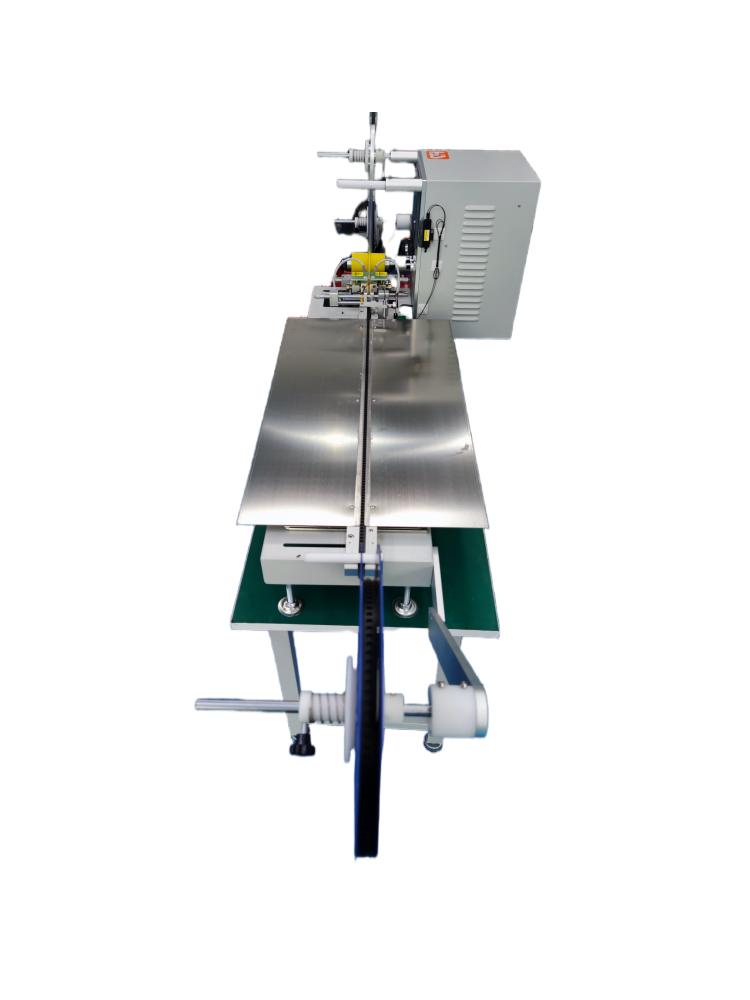

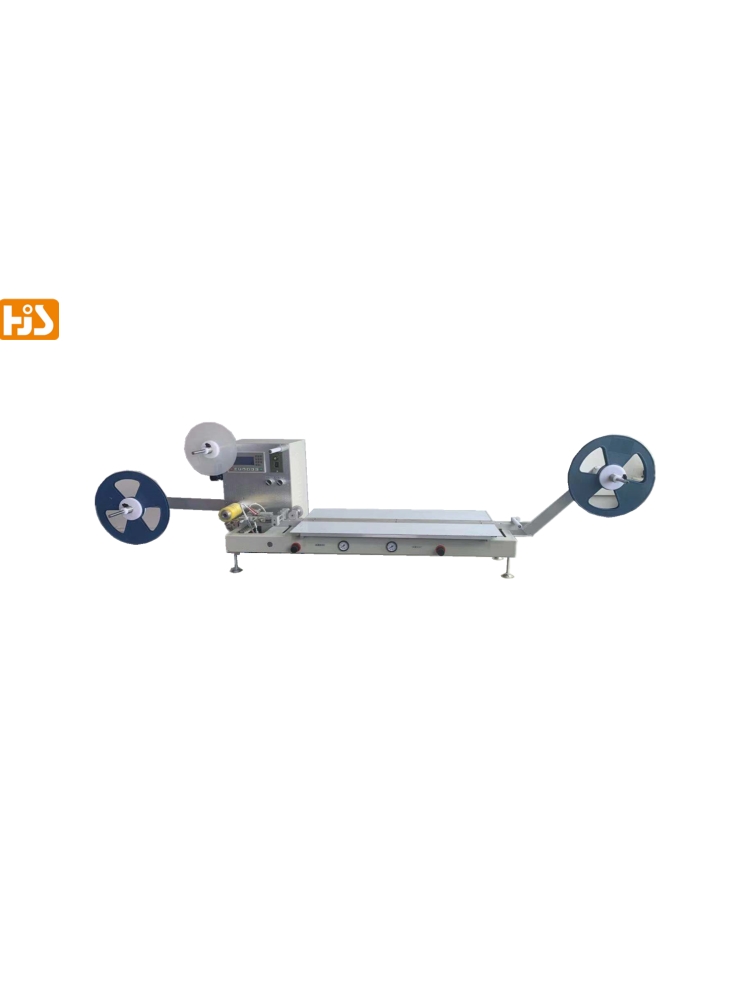

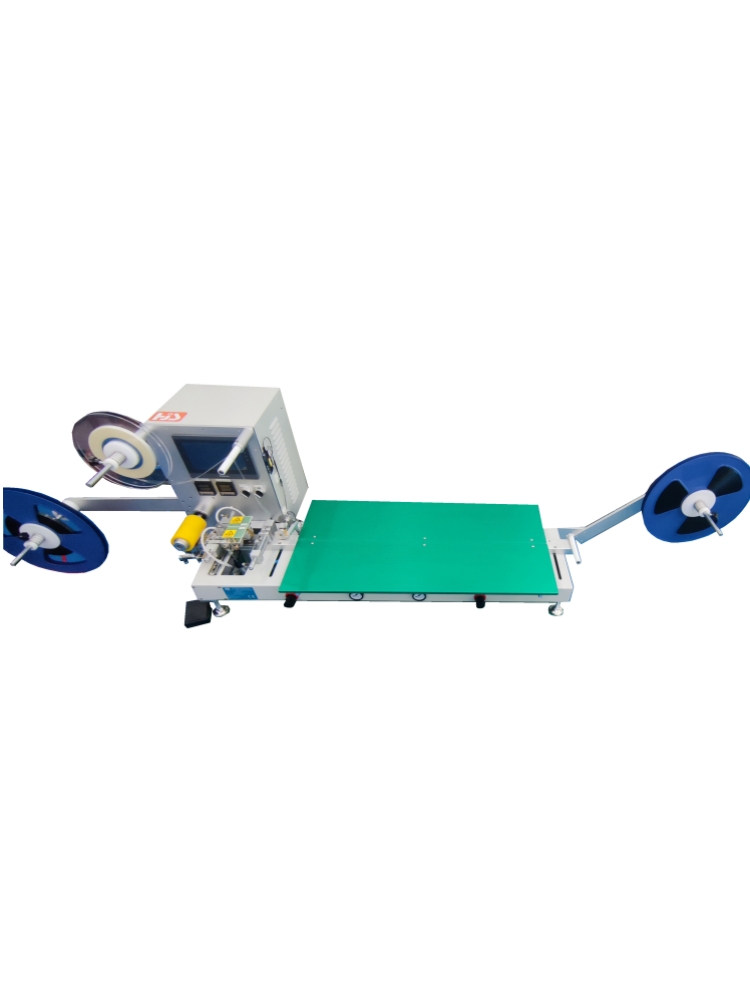

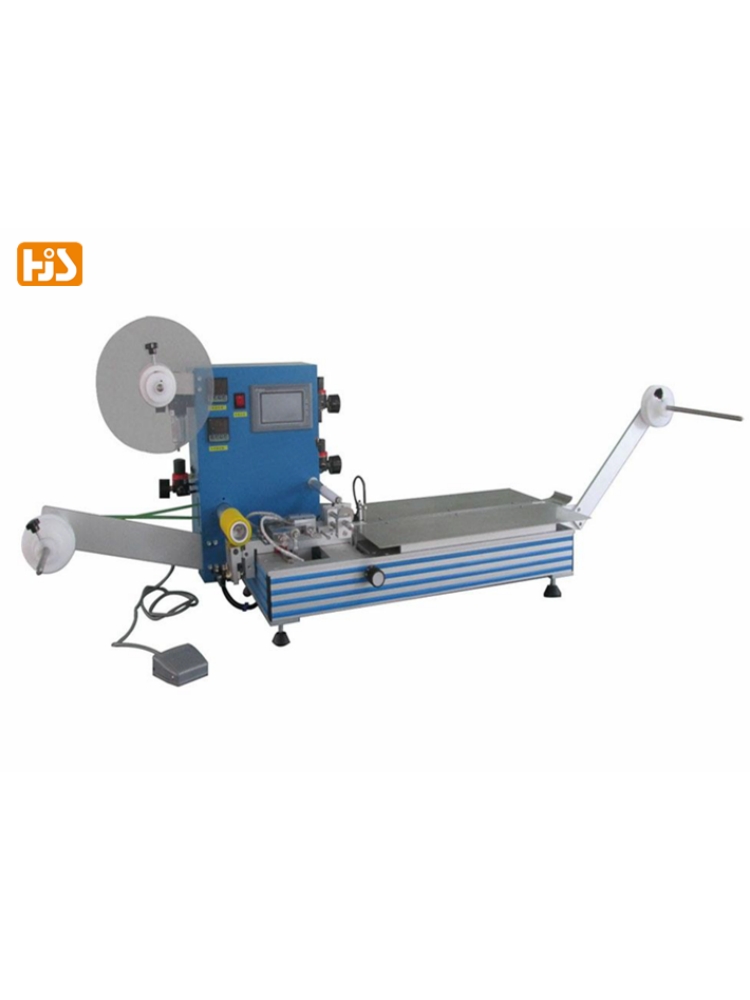

Semi-auto Taping Machine HJC-1000

Name:Professional Semi-Auto SMD Taping Machine for SMD components packaging | Manual loading SMD taping machine

Model: HJC-1000A/HJC-1000B/HJC-1000C

Use: the taping packages of a variety of surface mounting devices (SMD)

Flexible, easy-to-use, make HJC-1000 a perfect choice for manual taping.

smd tape and reel machine|semi-automatic smd taping machine|smd feeder machine|smd packaging machine|smd taping equipment|manual smd taping machine|smd taping system

Features:



  1. Packing mode: manual loading, automatic sealing and taping.
    2. HMI: touch-screen.
    3.Taping speed: adjustable.
    4.Count by fiber-optical sensor.
    5.Can be controlled by pedal or manual.
    6.Can be used with EIA-481 standard plastic reels(7″,13″,15″,22″,and 24″).
    7. Independently sealing pressure control



Model HJC-1000  Semi-auto Component Taping Machine
Feeding suitable with ELA-481 standard wheel and cover tape
Tape width 8mm-72mm
Control system In-built HMI
Temperature control two heads and independent PID temperature control, temperature range is 20-200°C
Taping speed 3000-7000PCS/hr. According to specific Component
Calculator count by fiber-optical sensitive
Package type self adhesive or hot sealing
Selective configuration
Weight 50KG
Mchine Dimension 1650*460*580mm (L*H*W)
Power supply AC200V / 50HZ
Pressure 3.0kg/cm2 (0.3Mpa)
Carrier tape empty alarm not available
Cover tape empty alarm not available
Empty pocket detection available
Counter Qty/Reel available(encoder)
Component Orientation alarm Non standard configuration/Optional sensor and image detection system
Carrier to cover weld strength check Need “Peel force tester” for check
Setup time for reel changeover 2~3minutes
Setup time for model changeover with different tape width 2~3minutes
Machine supply lead time 5days (standard)
Model HJC-1000 HJC-1000A HJC-1000B HJC-1000C HJC-1000D

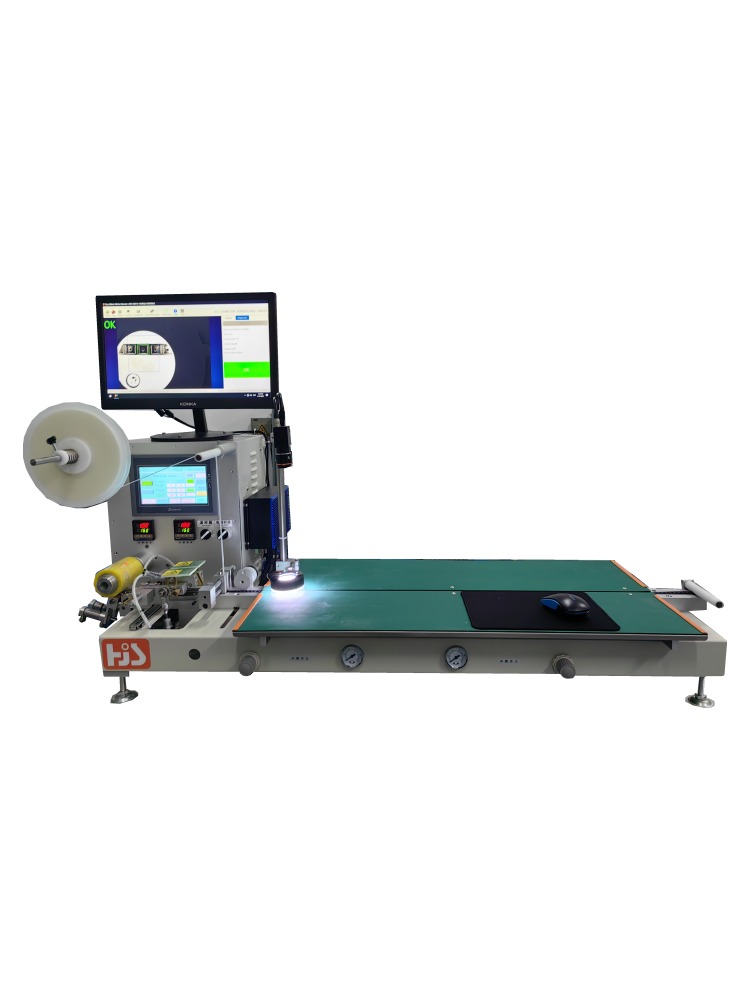

Function Normal model without leakage detection Normal model Model with CCD Long length model Normal model
HMI Not touch screen Normal touch screen Normal touch screen Normal touch screen Touch screen with wifi module
