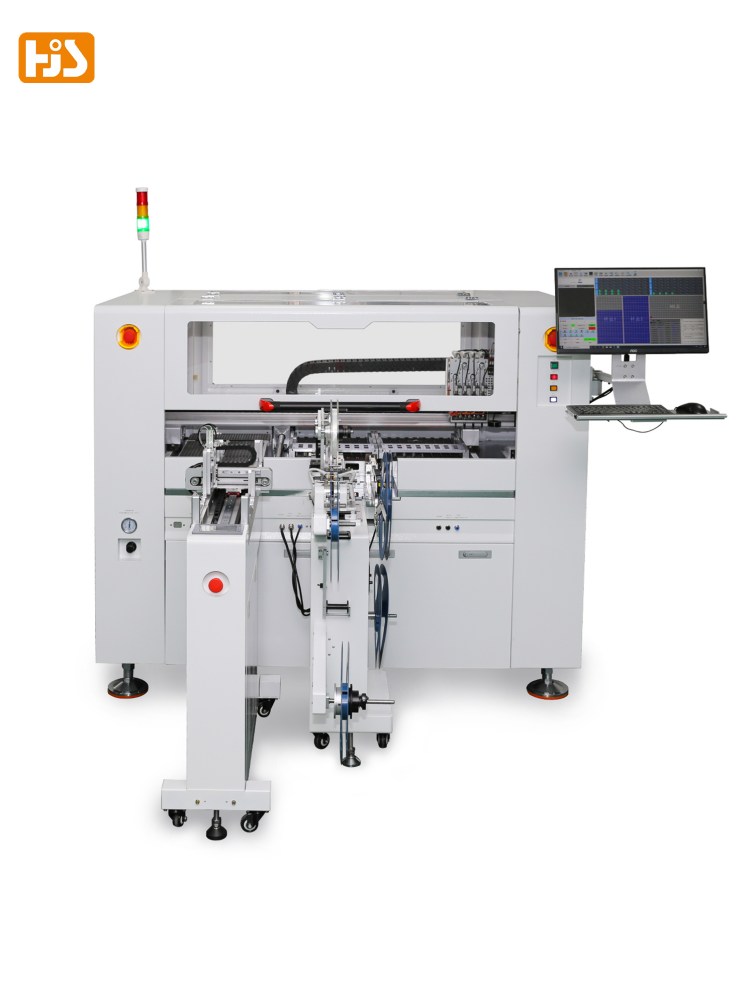

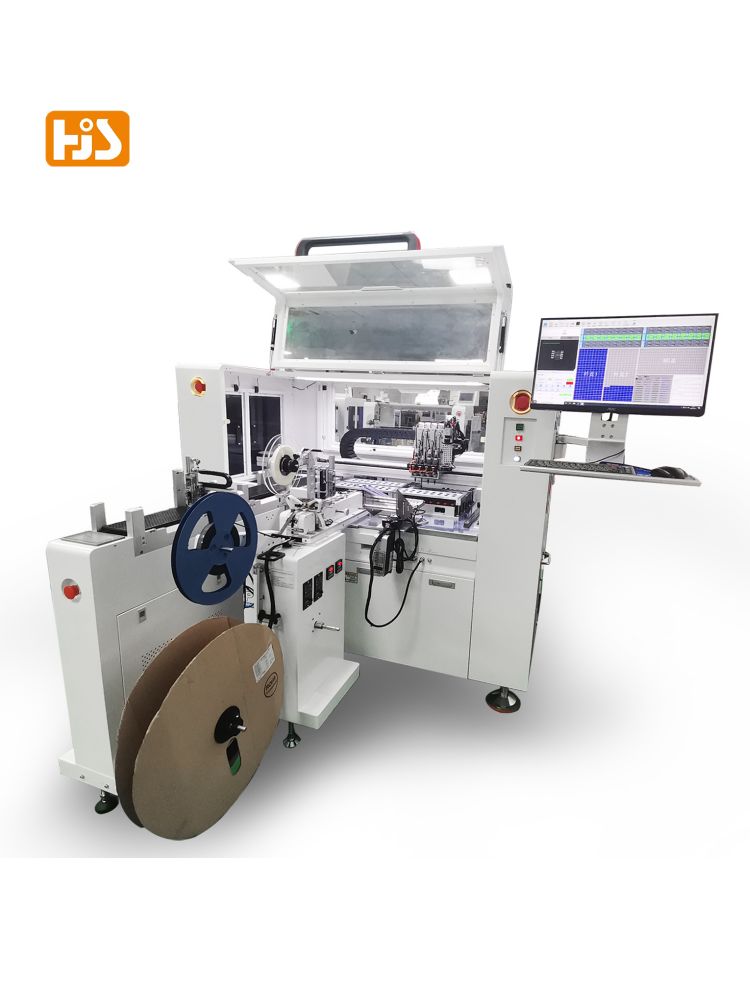

Multifunctional IC Programming Machine HJC-3500

HJC-3500 for the standard JEDEC tray, tape, tube programming / test three-in-one automation equipment, using X,Y,Z three-axis manipulator and Z axis equipped with four suction nozzle suction chip stable performance. Equipped with two built-in programmer (32 sites) and support external programmer (12 sites). Automatic tray feeding assembly can support up to 20 trays. Automatic tape sealing.

Convenient and efficient. Production capacity up to 3000 UPH, CCD testing, high equipment compatibility. Tray in and tape out, tape in and tray out, tray in and tray out, tape in and tape out, the tray in and tube out, the tape in and tube out, six modes.

ic programming machine manufacturers|ic programmer|high speed ic programmer|universal ic programmer|ic programming|ic programming machine

Features:

    Four suction nozzles,the production capacity is high

    Comes with brake function, will not fall off when power off Protection chip damage

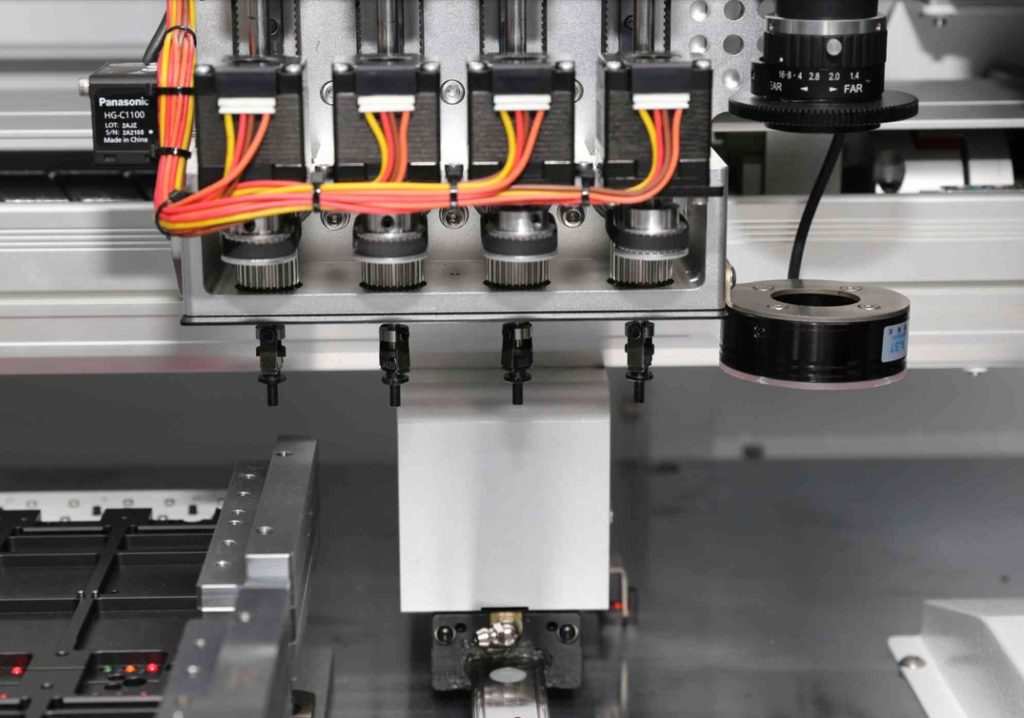

    IC programming nozzles

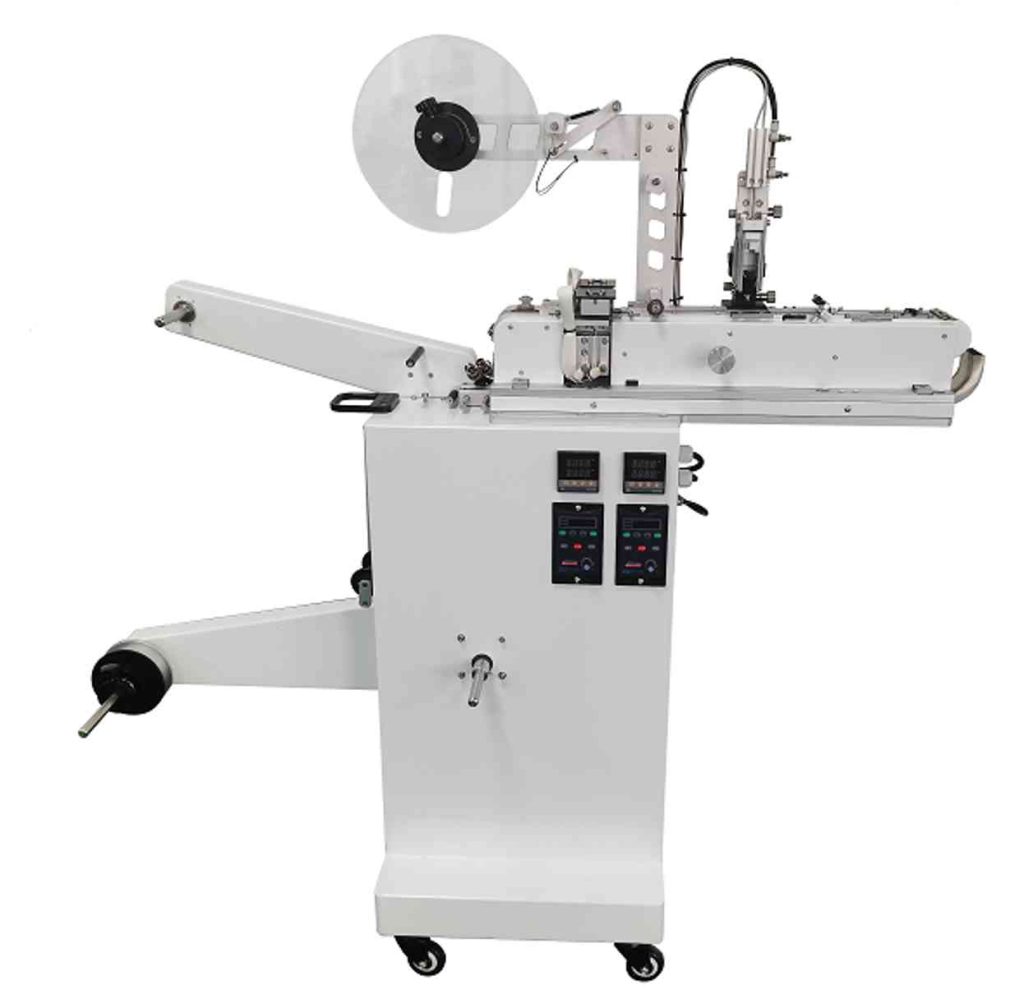

    Automatic taping assembly

    Standard 12-16mm optional 8-32mm feeder

    auto taping assemblyAuto tray assembly

    Can support 20 trays, saving time and effort to improve efficiency

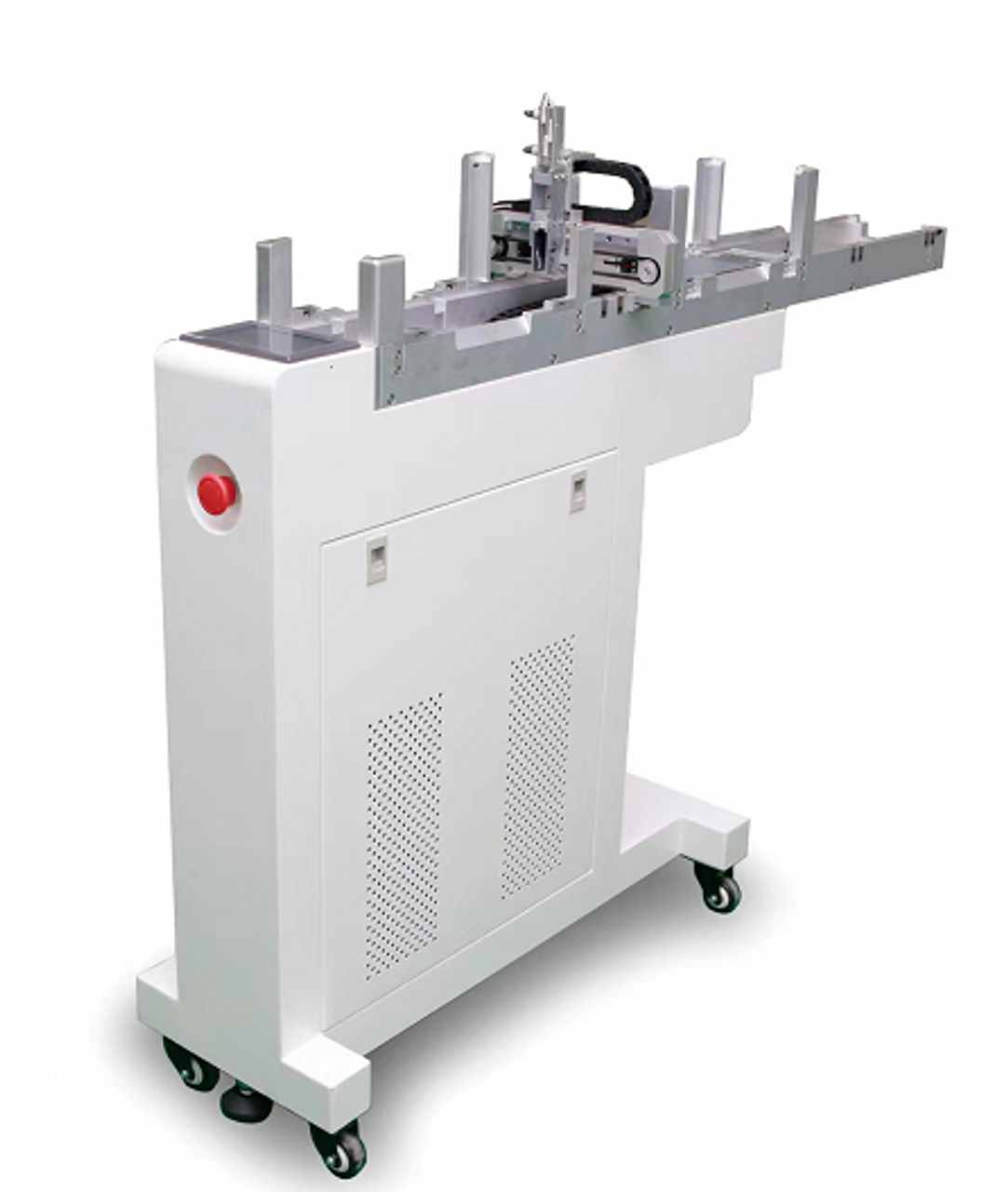

    auto tray assembly Auto tube feeder

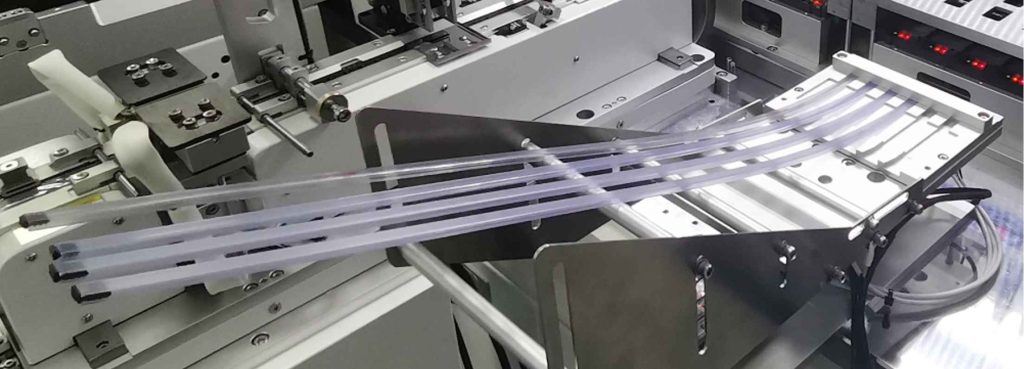

    Tube  support SOP150/SOP210/SSOP210

    auto IC tube feeder

     Options:

    1. Laser marking
    2. Code scanning
    3. Dotting





    please contact sales for video
