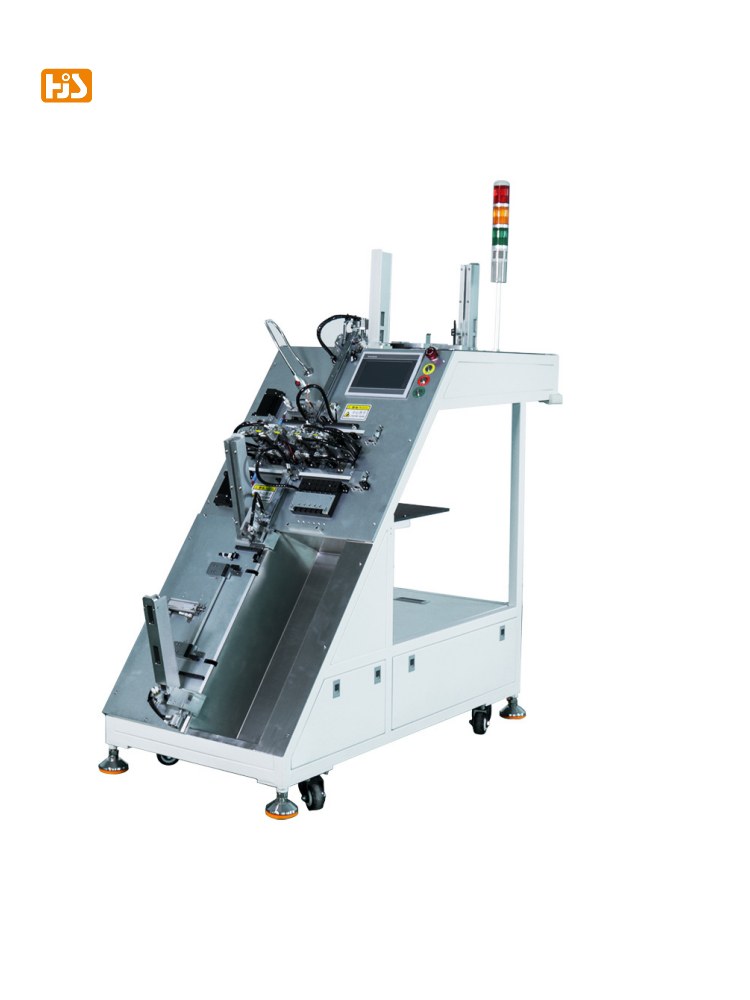

IC Testing and Sorting with Tube HJC-8000T

Name: IC Testing and Sorting with Tube

Model: HJC-8000T

Used for: Applicable to all tube IC testing / sorting/burning/programming. Such as QFP / LQFP / PLCC / TSOP / BGA / QFN, etc.

With software programmer, machine can be used as automatic IC programming machine.

IC testing and sorting|IC handler|semiconductor testing and sorting|IC tester|wafer testing and sorting|die testing and sorting|automated IC testing and sorting|IC testing and sorting machine|tube IC testing|IC programming|


    ★ Auto check BIN signal, sorting by different BIN signal, allocate for different unloading area


    ★ High speed, precision, easy maintaneance


    ★ Tube in tube out, tube in tape out

    Power supply AC220V/50Hz
    Power 0.26KW
    Air source 0.6MPa
    Ambient temperature 10~45°
    Air humidity 20~95%(Non   condensing)
    Control PLC
    Pick and place accuracy ±0.05MM
    Loading and unloading Manipulator
    IC package applied SSOP/SOP150,SSOP/SOP210,SOP300,DIP300,TSSOP173…
    Feeding Tube   50pcs
    Collecting One   tube auto, 6 tubes manual
    Burning/programming station 4
    UPH 8000PCS
    Weight 160KG
    Machine Size 1250*600*1450mm


    1. Tube in tube out with laser marking;

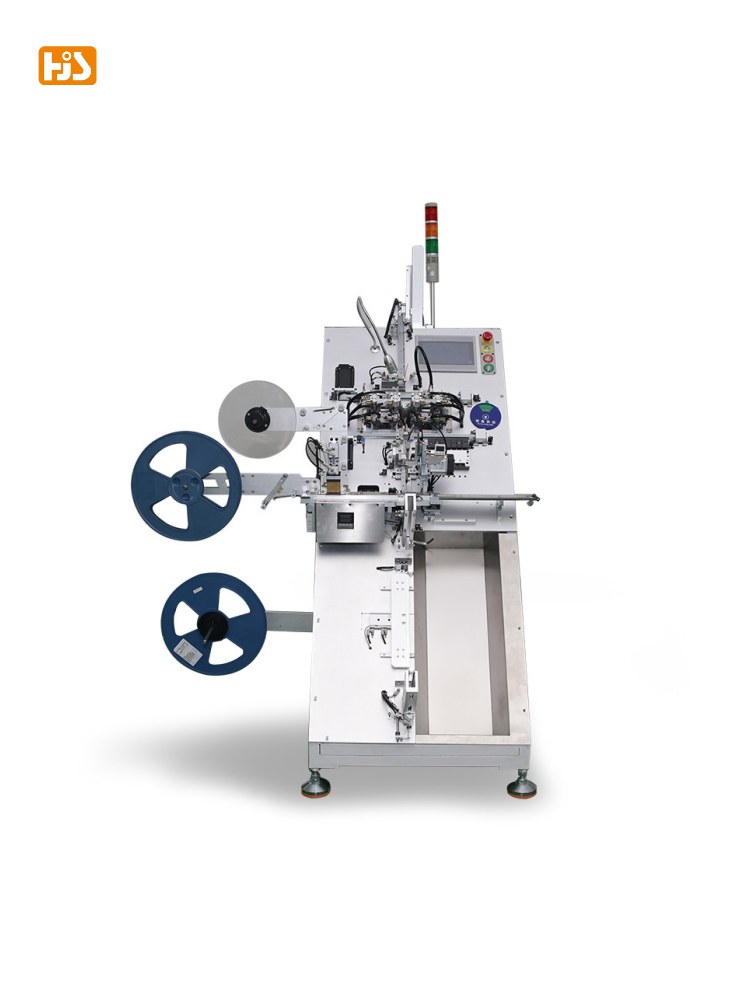

    2. Tube in tape out with programming;
    3. Tube in tape out with CCD inspection;
