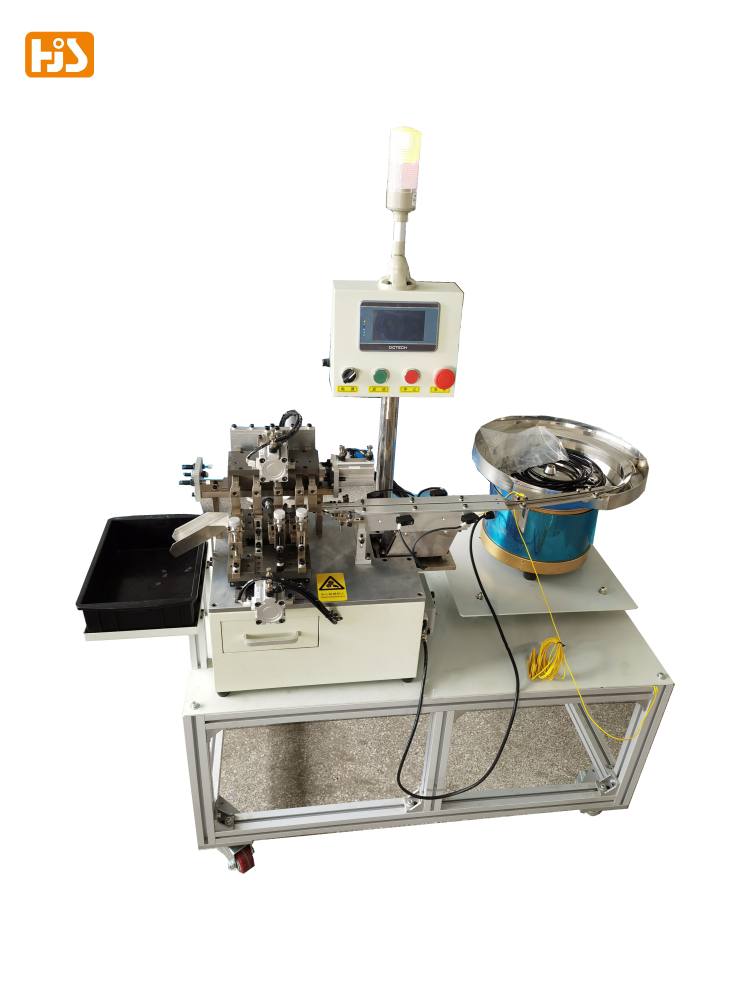

Hall IC Forming Machine HJC-3072

Equipment application

Used for bulk Hall IC molding

 Introduction

1. Automatic feeding of vibration plate ;

2, the electrical binding, powered cylinder, by the robot sequentially completed reclaimer, shaping , Cutting, shaping, polishing materials and other movements;

3. The foot length can be adjusted, with a reference scale, the knob can be adjusted up and down;

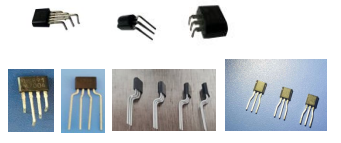

4. The molding shape is fixed by the mold, and different shapes require additional customized molds;

Hall IC forming machine|Hall sensor forming machine|Hall IC lead cutting machine|IC lead forming|automatic Hall IC forming machine|Hall IC taping machine

Introduction

1. Automatic feeding of vibration plate ;

2, the electrical binding, powered cylinder, by the robot sequentially completed reclaimer, shaping Cutting, shaping, polishing materials and other movements;

3. The foot length can be adjusted, with a reference scale, the knob can be adjusted up and down;

4. The molding shape is fixed by the mold, and different shapes require additional customized molds;

5. PLC program control, touch screen to set parameters and operation ;

6. Touch screen man-machine interface setting parameters and operations ;

7. Alarm function for material shortage and material blocking ;

8. Equipped with photoelectric sensor, the feeding of vibrating plate and the work of the host can be intelligently controlled;

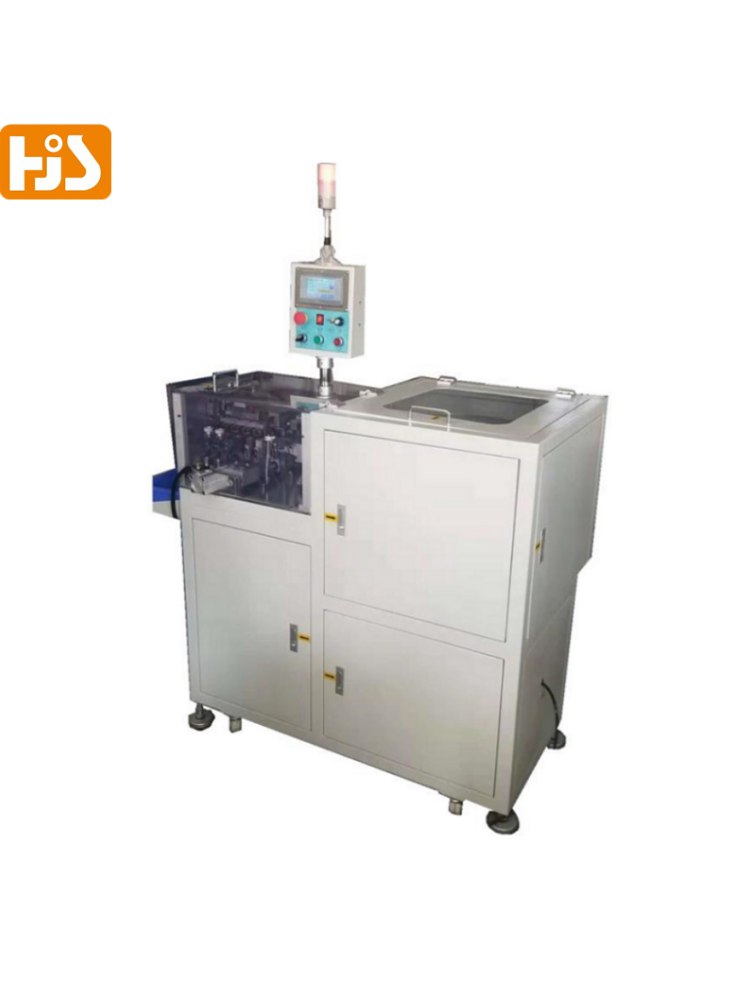

9. The vibrating plate is equipped with a soundproof cover, the noise of the equipment is controlled below 65 decibels, and the main unit is equipped with a safety cover and a safety door to ensure the safety performance of the equipment;

Tool material: Japan SKD11

Sheet metal process: high temperature powder spraying / surface anode / hard chrome

Power supply: 220VAC / 50HZ

Air source: 5-7mpa

Dimension: L1450xW950xH1500mm

Weight: 380Kg

Processing efficiency: 3000 pcs/

 Options:

  1. Ionizer can be added

please contact sales for video
